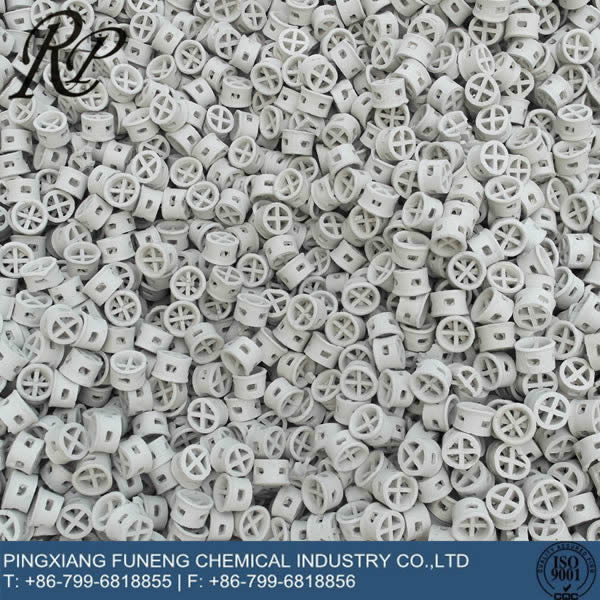

Ceramic Cascade Ring
- Ceramic Cascade Mini Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids……
View details
Ceramic Cascade Mini Ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions.
Application field: drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Specification
|
Spec. |
D*H*T (mm) |
Surface area (m²/m³) |
Free volume (%) |
Number per m³ |
Bulk density (Kg/m³) |
Dry Packing Factor (m-1) |
|
Ø 50 |
50*30*5 |
108.8 |
78.7 |
9091 |
516 |
223 |
|
Ø 76 |
76*45*7 |
63.4 |
79.5 |
2517 |
426 |
126 |
