Ceramic Tri-Y Ring
- Ceramic Tri-Y ring is a kind of ceramic tower packing which is belong to ceramic random packings. It has great advantage of acid-&he……
View details

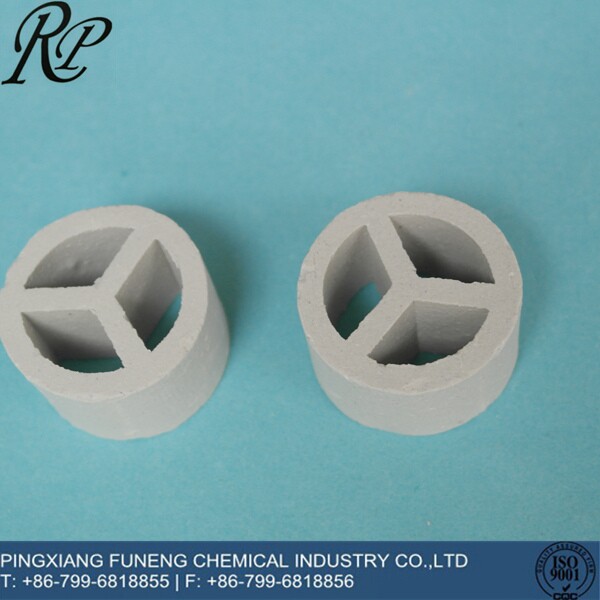

Ceramic Tri-Y ring is a kind of ceramic tower packing which is belong to ceramic random packings. It has great advantage of acid-&heat-resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except HF acid, and can be used in high and low temperiture conditions.
Application: It be widely used in the tower of dry, absorbing, cooling, washing and recovery etc. in chemical, petrochemical and metallurgical industry.
Specification
| Name | Normal size | Diameter*Height*Thickness mm | Surface area m2/m3 | Free volume % | Bulk density kg/m3 | No.elements per/m3 | Packing factor m-1 |
| Tri-Y ring | Φ25 | 25*13*2 | 240 | 74 | 760 | 87000 | 390 |
| Φ38 | 38*20*3 | 160 | 75 | 740 | 27600 | 260 | |
| Φ50 | 50*30*4 | 138 | 75 | 745 | 10100 | 233 | |
| Φ80 | 80*50*9 | 90 | 70 | 710 | 1910 | 262 |
(We can also be designed and manufactured to meet the need of specific applications.)
