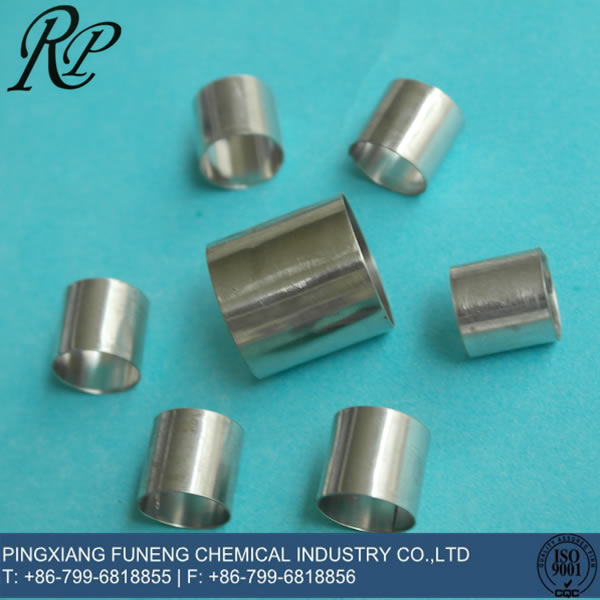

Metal Raschig Rings
- Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L. Geometric Parameters： Size (mm) Bulk de……
View details
Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Geometric Parameters：
| Size (mm) |
Bulk density (kg/m3) |
Number per m3 | Surface area (m2/m3) |
Free volume (%) |
| 16*16*0.3 | 340 | 21400 | 330 | 95 |
| 25*25*0.4 | 280 | 52380 | 212 | 96 |
| 25*25*0.5 | 365 | 52380 | 220 | 95 |
| 25*25*0.6 | 440 | 52380 | 226 | 94 |
| 38*38*0.4 | 190 | 15200 | 143 | 97 |
| 38*38*0.6 | 300 | 15200 | 145 | 96. |
| 38*38*0.8 | 406 | 15200 | 146 | 96 |
| 50*50*0.5 | 191 | 6820 | 106 | 97 |
| 50*50*0.7 | 285 | 6820 | 108 | 96 |
| 50*50*0.8 | 318 | 6820 | 109 | 95 |
| 76*76*0.8 | 199 | 1850 | 69 | 97 |
| 90*90*1.0 | 229 | 1220 | 62 | 97 |
