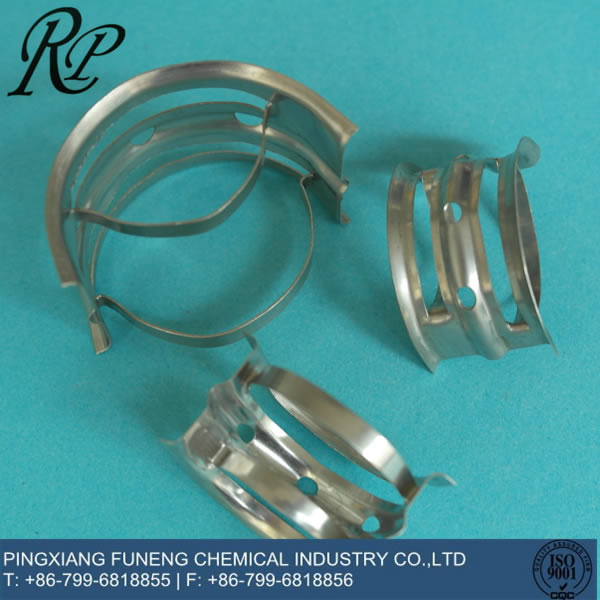

Metal Nutter Ring
- Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L. Features: 1.Efficiency enhanced by lateral liquid……
View details
Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Features:
1.Efficiency enhanced by lateral liquid spreading and surface film renewal.
2.Superior surface utilization in mass and heat transfer, allowing shorter packed bed heights.
3.One type of high performance random packing
4.Mechanical form provides maximum randomness with minimal nesting.
Geometric Parameters：
| Size |
Thickness
(mm) |
Denstiy (kg/m3) |
No. pcs/ m3 | Surface area (m2/m3) |
Free volume (%) |
| 0.7# | 0.2 | 171 | 167400 | 226 | 97.7 |
| 1.0# | 0.3 | 179 | 67100 | 168 | 97.7 |
| 1.5# | 0.4 | 181 | 26800 | 124 | 97.6 |
| 2.0# | 0.4 | 130 | 13600 | 96 | 98.2 |
| 2.5# | 0.4 | 121 | 9310 | 83 | 98.4 |
|
3.0#
|
0.5
|
133
|
4200 |
66
|
98.2
|
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Other wall thicknesses are available on request.
