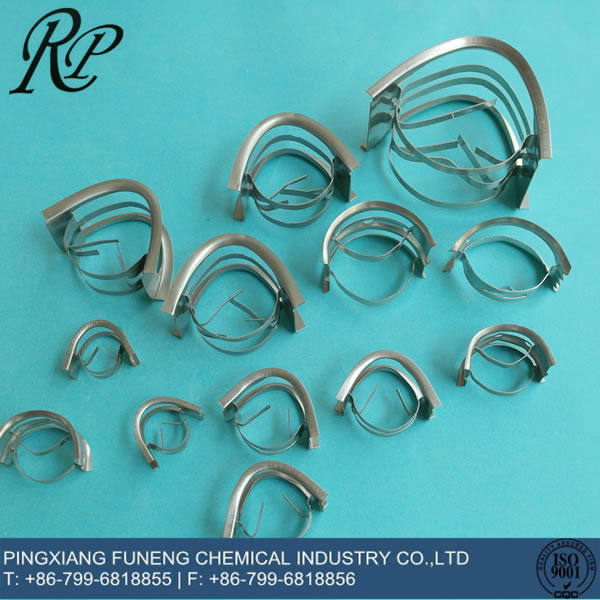

Metal Intalox Saddle
- Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L. Features: 1.A versatile packing used in dis……
View details
Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Features:
1.A versatile packing used in distillation, absorption and other operations.
2.Used in both deep vacuum and high pressure towers.
3. Funeng metal saddle is high performance random packing successfully used in mass transfer towers
both small and large diameter. It is frequently used in deep vacuum towers where low pressure drop
is crucial and also high pressure towers where capacity significantly exceeds conventional trays.
Geometric Parameters：
| Size (mm) |
Thickness
(mm) |
Bulk density (kg/m3) |
Number per m3 | Surface area (m2/m3) |
Free volume (%) |
| 15 | 0.3 | 287 | 33800 | 305 | 96.5 |
| 25 | 0.3 | 206 | 127180 | 241 | 96.8 |
| 40 | 0.4 | 205 | 51180 | 161 | 97.1 |
| 50 | 0.4 | 137 | 15500 | 104 | 98.1 |
| 70 | 0.5 | 112 | 4690 | 62 | 98.6 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Other wall thicknesses are available on request.
