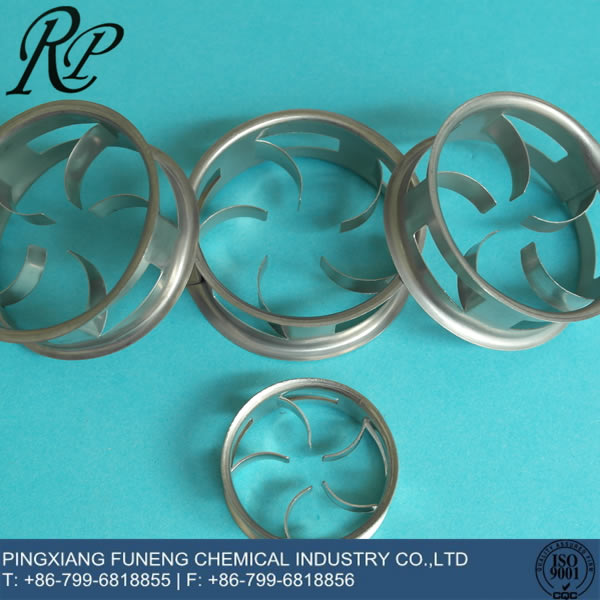

Metal Cascade Mini Ring
- Feature: Reduced pressure drop Increased plant capacity Improved resistance to “fouling” Higher operational efficiency Material ……
View details
Feature:
Reduced pressure drop
Increased plant capacity
Improved resistance to “fouling”
Higher operational efficiency
Material available: carbon steel, stainless steel including 304, 304L, 410,316, 316L.
Geometric Parameters：
| Size (mm) |
Thickness
(mm) |
Bulk density (kg/m3) |
Number per m3 | Surface area (m2/m3) |
Free volume (%) |
| 0P Ф17x15x6 | 0.25 | 347 | 530000 | 420 | 96 |
| 1P
Ф 25x22x8 |
0.3 | 247 | 150000 | 238 | 96.9 |
| 1.5P
Ф 34x29x11 |
0.35 | 208 | 61000 | 164 | 97.4 |
| 2P
Ф 43x38x14 |
0.35 | 203 | 33000 | 160 | 97.5 |
| 2.5P
Ф 51x44x17 |
0.4 | 159 | 15700 | 105 | 98 |
| 3P
Ф 66x57x21 |
0.4 | 165 | 10140 | 108 | 97.9 |
| 4P
Ф 86x76x29 |
0.4 | 120 | 4310 | 78 | 98.5 |
The above data is reference to material stainless steel (AISI304) in the material thickness shown.
Other wall thicknesses are available on request.
