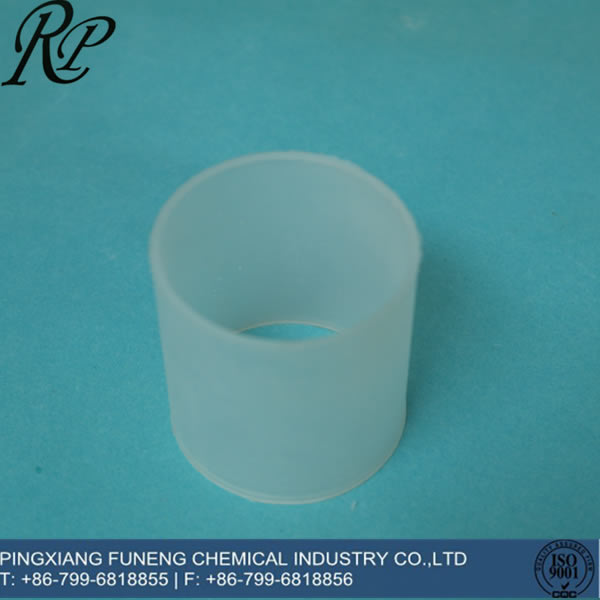

Plastic Raschig Rings
- There are kinds of materials for rasching ring, such as PP, PVC, CPVC, PVDF, PTFE, PE. Features: Low pressure drop, large void s……
View details
There are kinds of materials for rasching ring, such as PP, PVC, CPVC, PVDF, PTFE, PE.
Features: Low pressure drop, large void space, large flux, high mass-transfer efficiency, low energy consumption etc;Excellent distribution in tower packing.
Application: Absorption of CO2,SO2, Chlorine, Drying of Chlorine, Removal of Hydrogen sulfide, mercaptan, Humidification and de-humidification
Technical parameters
| Rasching Ring | ||
| Size mm |
Bulk Number Pieces/m3 |
Weight Kg/m3 |
| 25*25*1 | 53500 | 114 |
| 50*50*1.5 | 6500 | 60 |
| 76*76*2.5 | 1927 | 57 |
