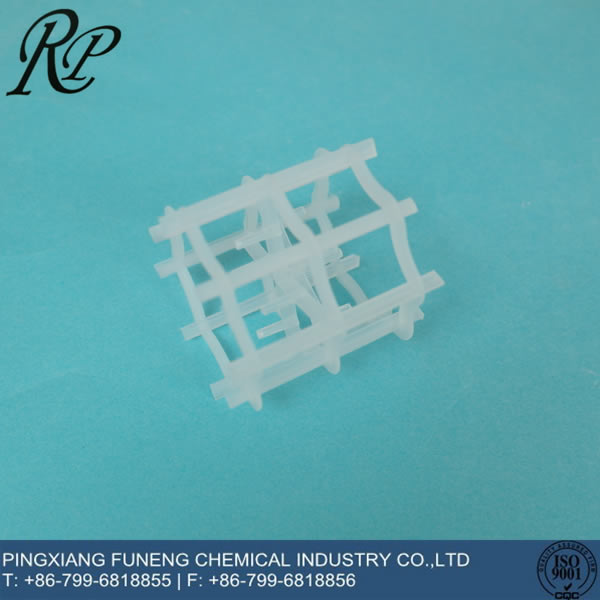

Plastic mella ring
- Introduction Mella Ring( VSP Ring) is a very special ring, means very excellent packing. Features: low pressure drop, large throughout,……
View details
Introduction
Mella Ring( VSP Ring) is a very special ring, means very excellent packing.
Features: low pressure drop, large throughout, high efficiency, high operating elasticity, and perfect strength. It has rational symmetry, excellent inner structure and large free space
Technical parameters
| Specification | D×H×T | Specific Area | Void ratio | Number | Bulk Density | Drying Packing Factor |
| mm | mm | m2/m3 | m3/m3 | n/m3 | kg/m3 | m-1 |
| φ25 | 25×12.5×1.2 | 250 | 0.93 | 81000 | 90 | 310 |
| φ38 | 38×19×1.4 | 138 | 0.95 | 26800 | 78 | 163 |
| φ50 | 50×25×1.5 | 121 | 0.95 | 10560 | 76 | 144 |
| φ76 | 76×38×2.5 | 75 | 0.95 | 3400 | 70 | 86 |
