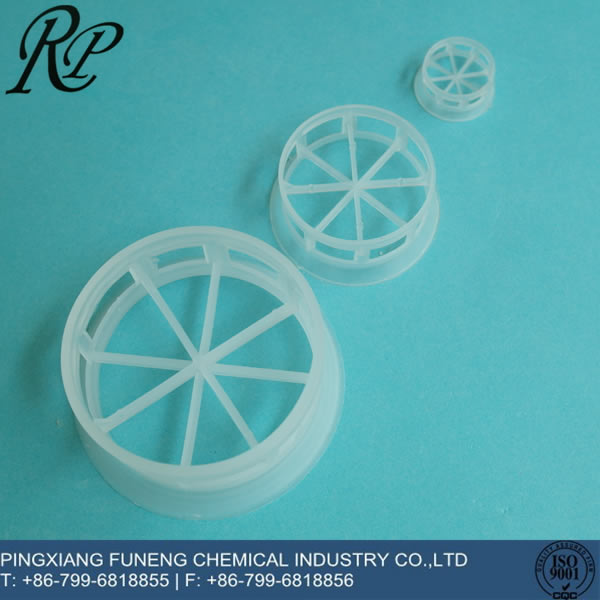

Plastic cascade ring
- Introduction: Plastic cascade ring or plastic cascade mini ring’s height is 1/2 or 1/3 ratio of the cascade ring’s diameter, and plastic ……
View details
Introduction:
Plastic cascade ring or plastic cascade mini ring’s height is 1/2 or 1/3 ratio of the cascade ring’s diameter, and plastic cascade ring added cone-shaped flanging at one edge. So it reduced the resistance when air pass through bed layer, and increased voidage. The height/diameter ratio of the plastic cascade ring packing is 0.5 which is only half that of the known plastic pall ring, plastic cascade ring can be installed in a tower that tends to orient in a more structured way such that its inner surface could be more efficient.
Technical data
|
Spec. |
D*H*T (mm) |
Bulk density (kg/m³) |
Surface area (m²/m³) |
Free volume (%) |
F Factor m-1 |
|
Dg16 |
16*8.9*1.1 |
135.6 |
370 |
85 |
602.6 |
|
Dg25 |
25*12.5*1.4 |
97.8 |
228 |
90 |
312.8 |
|
Dg38 |
38*19*1 |
57.5 |
132.5 |
91 |
175.8 |
|
Dg50 |
50*25*1.5 |
54.8 |
114.2 |
92.7 |
143.1 |
|
Dg76 |
76*37*3 |
68.4 |
90 |
92.9 |
112.3 |
